epicECU

Description

Note: epicECU comes with a harness plugs/connector kit. Additional kits available here

PnP’s available

We greatly thank our beta testers. epicECU official “V1” will launch early spring. Official specs are as follows:

I/O

• 12 cylinder sequential injection
• 12 cylinder sequential ignition
• 20 low side switched power outputs (any 12 can be used for staged injection)
• 4 high side switched power outputs
• 36 analog inputs
  • 7 dedicated NTC thermistor inputs
• 8 K-type thermocouple inputs
• 8 digital inputs
• 10 speed sensor inputs, selectable hall or VR on all 10
• 2 knock inputs
• 2 drive by wire
• 2x CANBus
• LIN/BSD
• K-Line
• Ethanol sensor input
• Onboard barometric sensor
• Motorsports inspired telemetrics package – gyroscope, magnetometer, and accelerometer

System

• 100% of mosfets are Infineon automotive line – with self overcurrent and overtemperature protection
• Mosfet OC fault reports are logged
• Total ECU HS (12Vin) current consumption logging
• Total ECU LS (gnd) current consumption logging
• Injector wiring open circuit detection and logging
• USB for tuning
• SD card logging

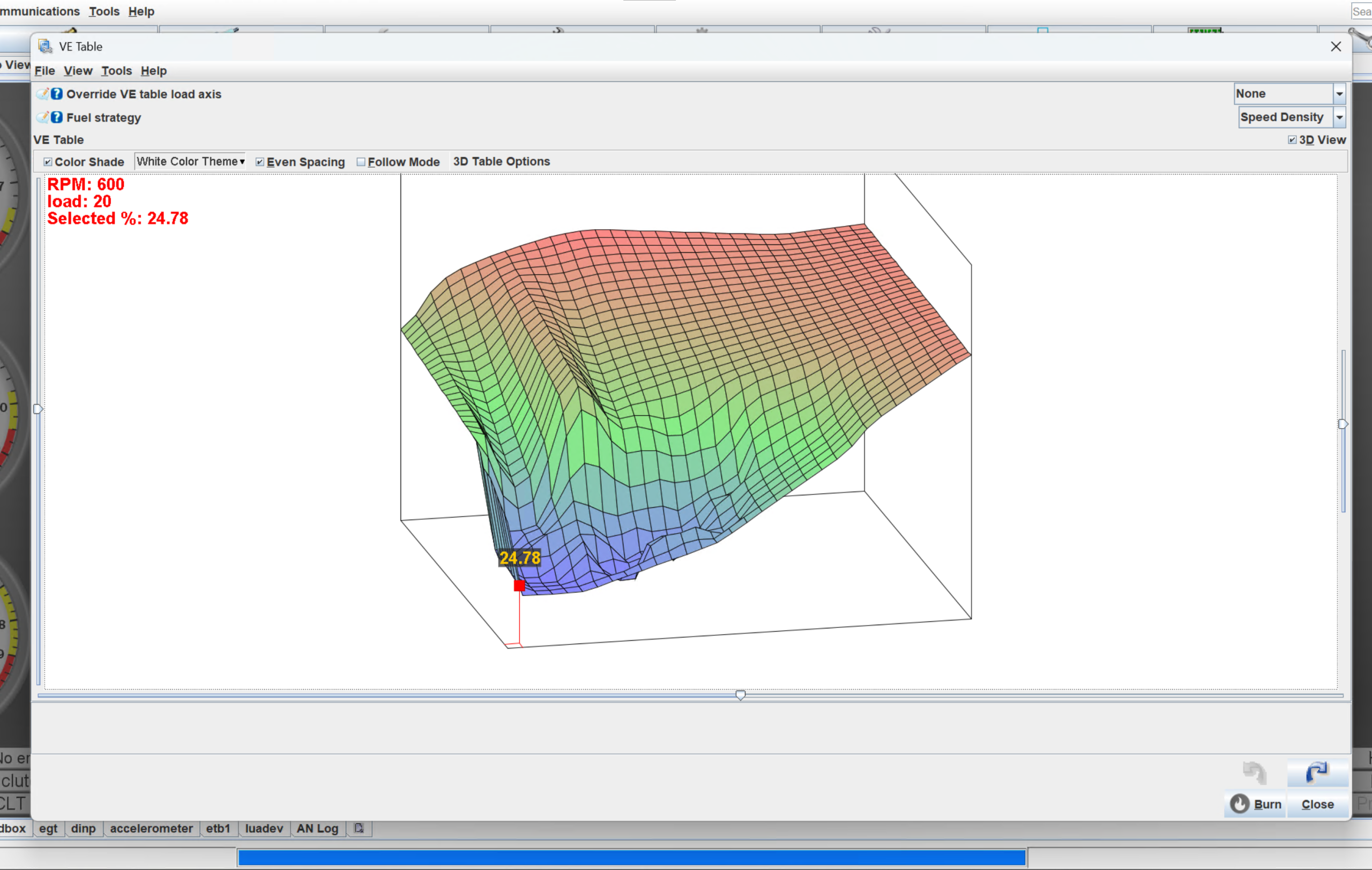

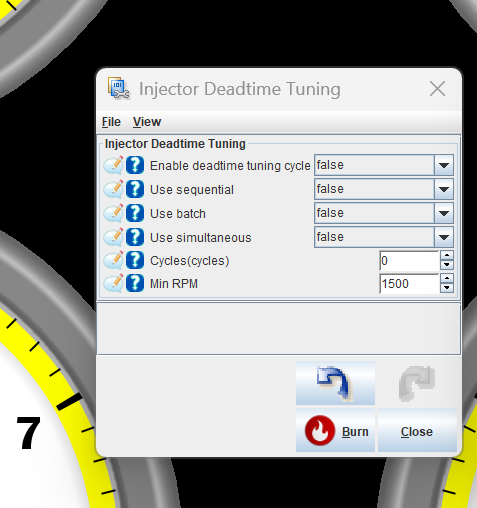

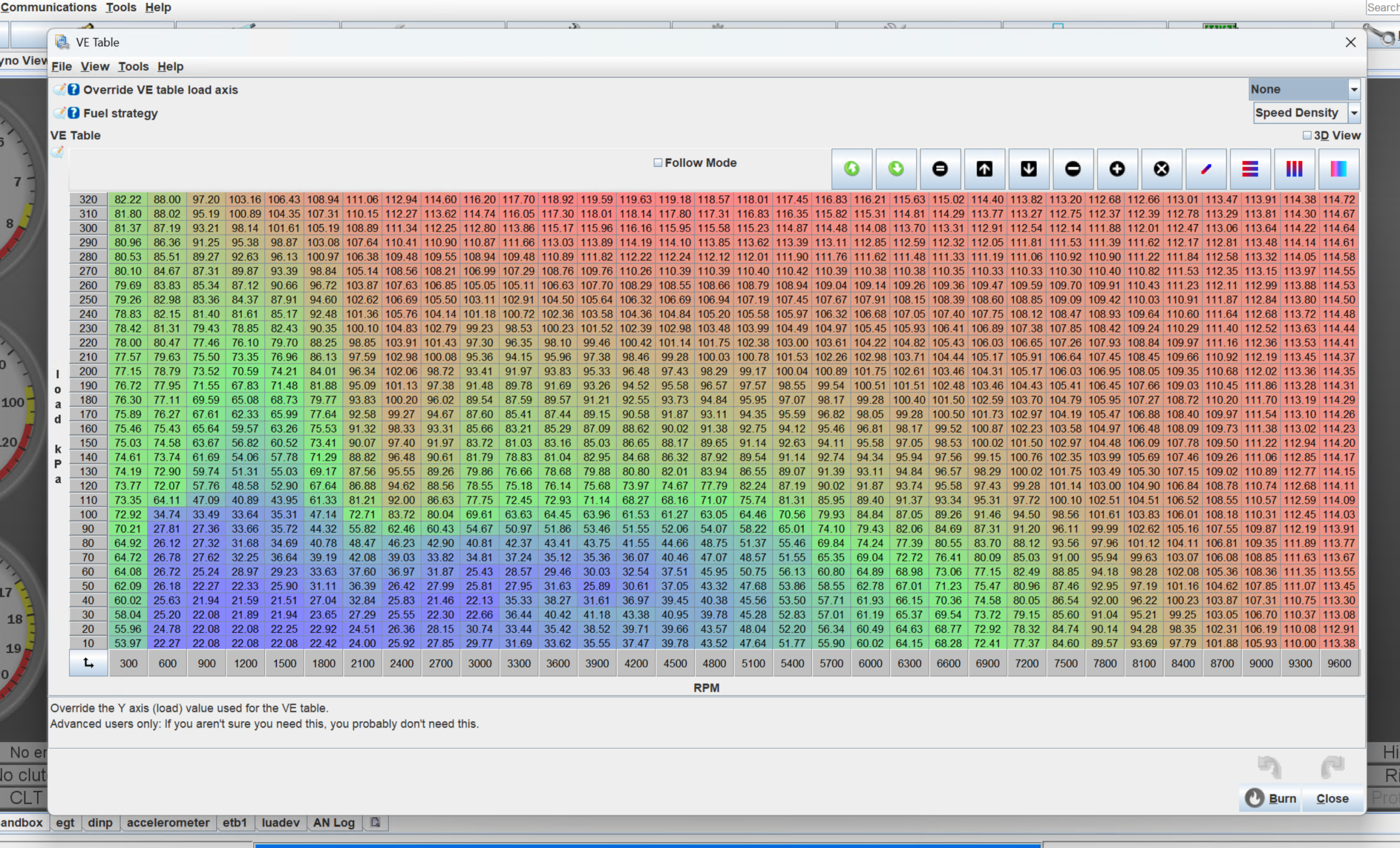

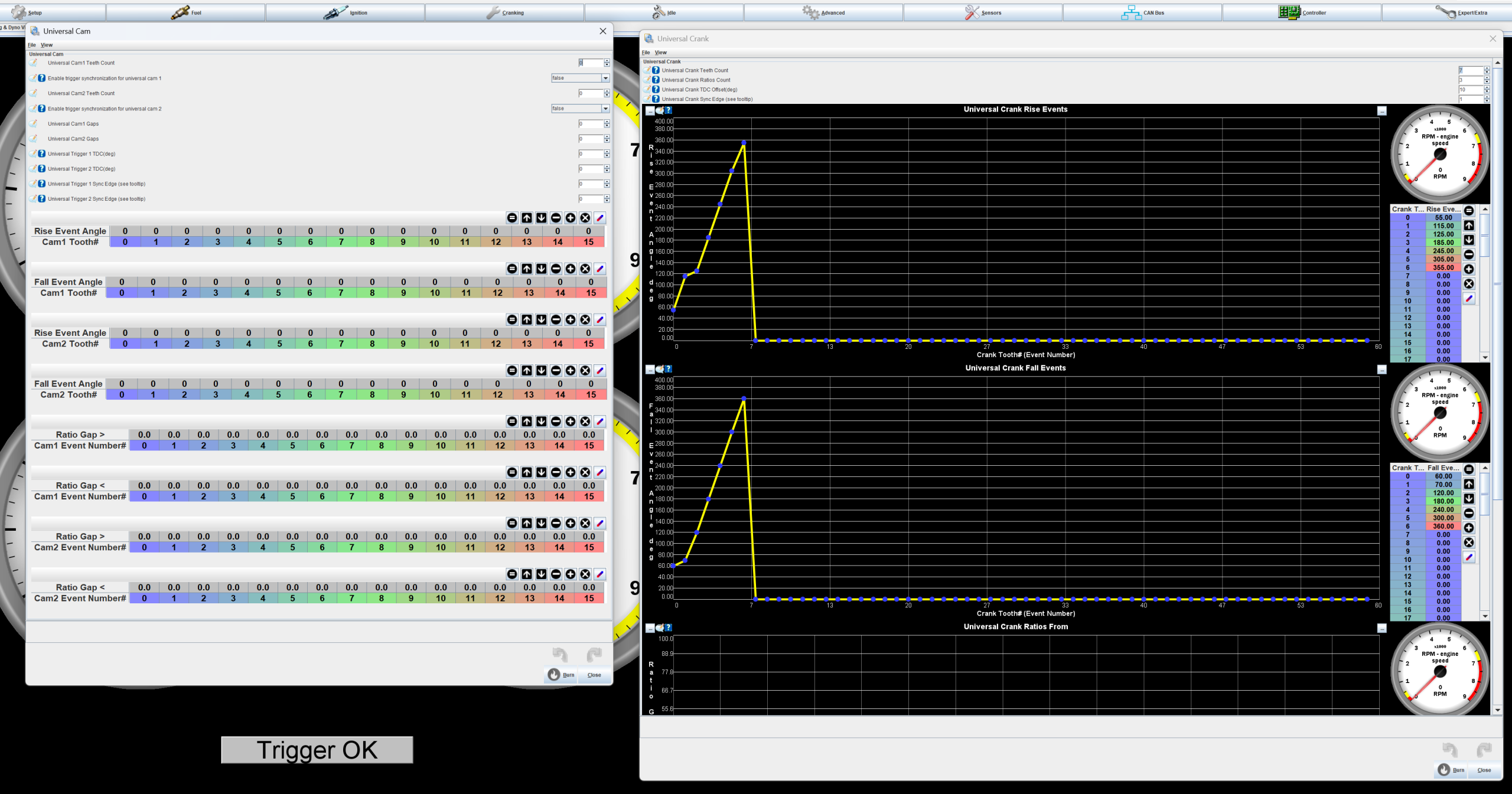

• Made for TunerStudio MS+
